Enhancing Readability: How Text Wrapping Improves SVG Error Messages

The FlavioKde/github-streak-stats-api project is an API that generates SVG images, likely for displaying GitHub streak statistics. A recent enhancement focused on improving how error messages are displayed within these generated SVGs, specifically by adding a wrapText function to the error_svg module. This feature ensures that even lengthy error messages are rendered clearly and legibly.

The Challenge with Dynamic Text in SVGs

When an API generates dynamic SVG content, such as visual statistics or interactive diagrams, it often needs to display text. A common pitfall arises when this text is dynamic, like an error message, and can vary significantly in length. Without proper handling, long text strings can easily overflow their designated SVG containers, leading to truncation, overlapping elements, or a generally unreadable user experience. For FlavioKde/github-streak-stats-api, ensuring error messages are always clear and consumable is paramount, but fixed-width SVG elements posed a challenge for arbitrary length strings.

Introducing wrapText for SVG Error Messages

To address the issue of text overflow in dynamically generated error SVGs, a new wrapText function was introduced. This function's primary goal is to intelligently break long text strings into multiple lines, ensuring they fit within a predefined width and remain fully visible and readable.

The Need for Intelligent Text Wrapping

Traditional SVG text elements (<text>) do not inherently support automatic text wrapping. If a text string is too long, it simply extends beyond the bounds of its container or gets clipped. For error messages, this behavior is unacceptable, as it can hide critical information from the user. The wrapText function acts as a pre-processing step, transforming a single long string into an array of shorter, manageable lines before they are rendered into separate <tspan> elements within the SVG.

Implementing the Text Wrapping Logic

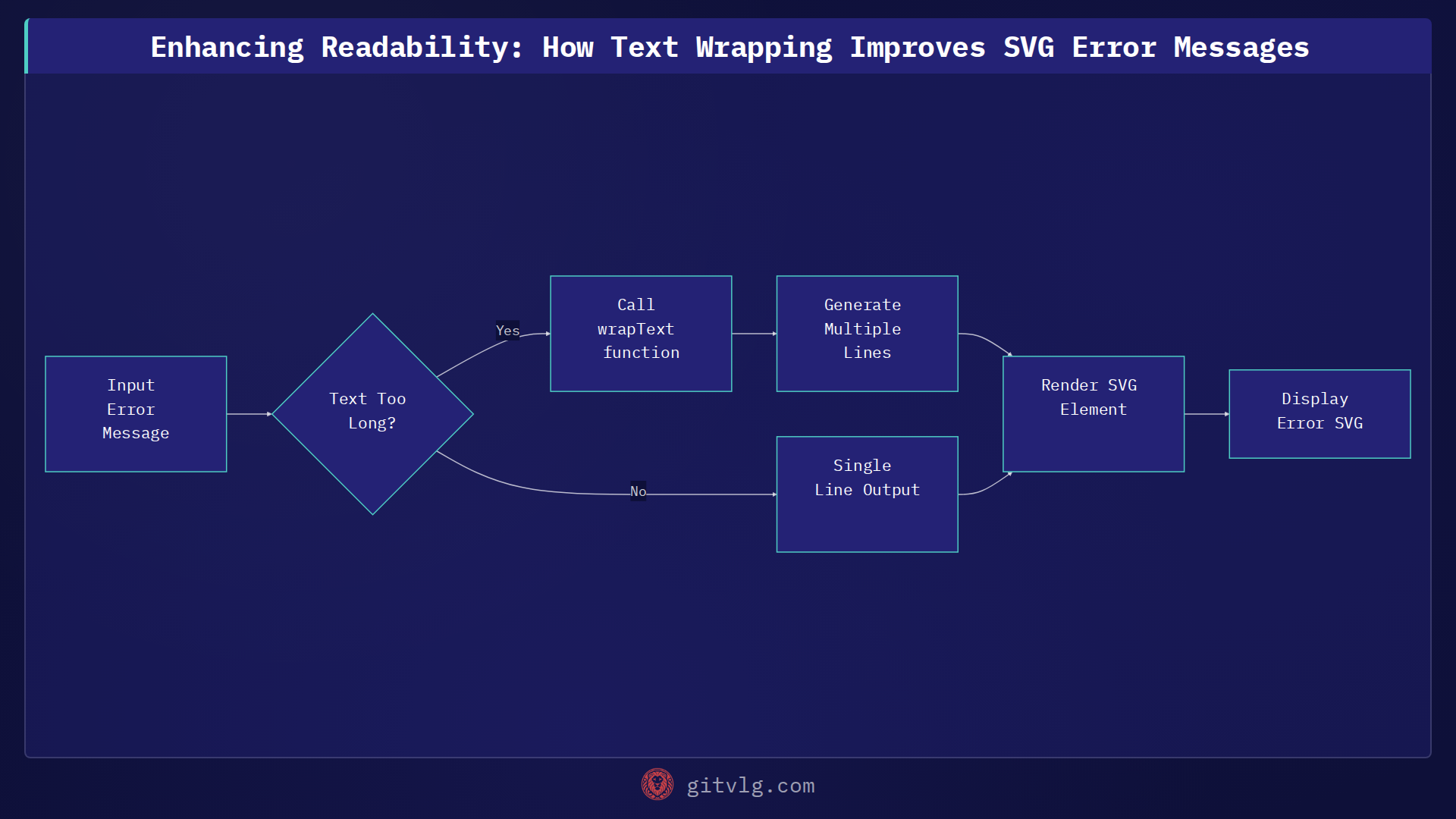

The core idea behind wrapText is to iterate through words, building lines and checking their estimated width against a maximum allowable width. When a line would exceed this width, the accumulated words form a new line, and the process continues with the next word.

/**
 * Illustrative example of a text wrapping function.
 * In a real SVG context, character width measurement would be more precise
 * using SVGTextElement.getComputedTextLength() or similar DOM methods.
 */
function wrapText(text, maxWidthPx, charWidthPx) {
  const words = text.split(' ');
  const lines = [];
  let currentLine = '';

  for (const word of words) {
    const testLine = currentLine === '' ? word : `${currentLine} ${word}`;
    if (testLine.length * charWidthPx > maxWidthPx && currentLine !== '') {
      lines.push(currentLine);
      currentLine = word;
    } else {
      currentLine = testLine;
    }
  }
  lines.push(currentLine); // Add the last line
  return lines;
}

// Example usage
const longErrorMessage = "This is a very long error message that needs to be displayed in a fixed-width SVG container.";
const wrappedLines = wrapText(longErrorMessage, 200, 7); // Max 200px, avg char width 7px
/*
// wrappedLines might look like:
[
  "This is a very long",
  "error message that needs",
  "to be displayed in a",
  "fixed-width SVG container."
]
*/

This illustrative wrapText function demonstrates how a long string can be broken down. In a production environment like github-streak-stats-api, charWidthPx would be dynamically calculated based on the font, font size, and actual text content to ensure precise fitting within the SVG canvas. The function then returns an array of strings, each representing a line that fits within the specified maximum width. These lines are then rendered individually into the SVG.

RESULT: Improved Clarity and User Experience

The implementation of wrapText significantly enhances the output of error_svg. Instead of truncated or overlapping text, users now receive clear, multi-line error messages that are easy to read and understand.

Benefits for API Consumers

Key Insight

For APIs or applications that dynamically generate visual content like SVGs, robust text handling is not a luxury but a necessity. Implementing functions like wrapText is crucial for maintaining readability, ensuring a professional appearance, and providing a consistently positive user experience, especially when dealing with variable data such as error messages. Prioritizing clear communication through well-formatted visual output significantly enhances the value of the generated content.
