Enhancing SVG Readability: Intelligent Text Wrapping for Error Messages

The Problem

In the github-streak-stats-api project, which generates dynamic SVG images to display GitHub streak statistics, we faced a common challenge: gracefully handling error messages of varying lengths. When an error occurred, the generated SVG might contain a long error string. Without proper handling, this text would often overflow its designated area within the SVG, leading to truncated or visually unappealing outputs. This not only degraded the user experience but also obscured critical information.

The Approach

To address the issue of text overflow, we implemented a dedicated text wrapping utility, wrapText. This function's primary role is to intelligently break long strings into multiple lines, ensuring they fit within a specified maximum width when rendered as SVG text.

Implementation Details

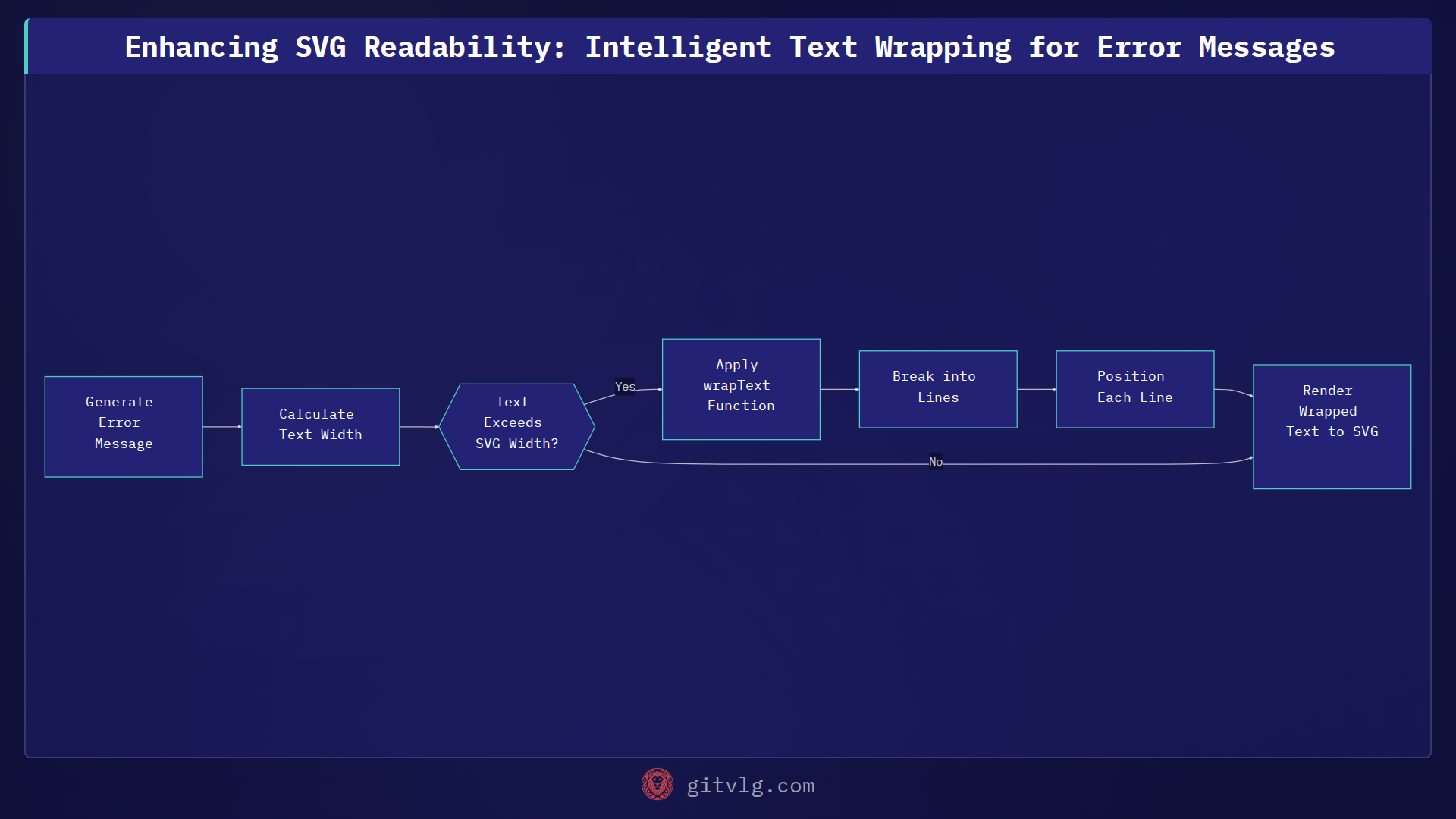

The wrapText function operates by iteratively measuring segments of text. For each line, it attempts to add words until the calculated width of the current line exceeds a predefined maximum. Once this limit is reached, a new line is started. This process continues until the entire message is wrapped.

A conceptual implementation in JavaScript might look like this:

function wrapText(text, maxWidth, fontConfig) {
  const words = text.split(' ');
  let lines = [];
  let currentLine = words[0] || '';
  const measureText = (str) => {
    // This would typically involve a CanvasRenderingContext2D or an SVGTextElement
    // to accurately measure string width based on font.
    // For demonstration, let's use a simplified heuristic.
    return str.length * (fontConfig.fontSize / 2); // Approximation
  };

  for (let i = 1; i < words.length; i++) {
    const word = words[i];
    const testLine = currentLine + ' ' + word;
    if (measureText(testLine) < maxWidth) {
      currentLine = testLine;
    } else {
      lines.push(currentLine);
      currentLine = word;
    }
  }
  lines.push(currentLine); // Add the last line

  return lines;
}

// Example usage within an SVG context (conceptual)
/*
const errorMessage = "This is a very long error message that needs to be wrapped properly within the SVG bounds to ensure full visibility and readability.";
const svgWidth = 400; // Example SVG width
const fontSize = 16; // Example font size
const font = { fontSize: fontSize, fontFamily: 'sans-serif' };

const wrappedLines = wrapText(errorMessage, svgWidth * 0.8, font); // Use 80% of SVG width

// Render these lines to SVG, adjusting Y-coordinate for each subsequent line
wrappedLines.forEach((line, index) => {
  console.log(`Line ${index + 1}: ${line}`);
  // append <text x="X" y="Y_offset" font-size="16">${line}</text> to SVG
});
*/

By providing a maxWidth parameter, the function ensures that each line segment respects the layout constraints. When rendering these lines in an SVG, each subsequent line is positioned with an incremented Y-coordinate, effectively stacking the text. This approach ensures that even verbose error messages are displayed cleanly and completely within the SVG canvas.

Key Insight

The ability to dynamically adapt text rendering to available space is crucial for robust UI generation, especially for components like SVGs where content can vary widely. Implementing utilities like wrapText significantly enhances the maintainability and user-friendliness of systems generating dynamic visual content, preventing visual clutter and ensuring all information is legible. This makes the github-streak-stats-api more resilient to unexpected input lengths.
