Mastering SVG Text: Enhancing Wrapped Message Rendering with tspan

In the FlavioKde/github-streak-stats-api project, which generates dynamic SVG statistics based on GitHub activity, a common challenge arises when displaying messages of varying lengths. Ensuring these messages are presented cleanly and legibly within the constraints of an SVG image is crucial for a polished user experience. This post delves into an update to the wrappedMessage rendering implementation, focusing on leveraging SVG's native capabilities for superior text layout.

The Situation

Previously, rendering dynamic messages within our SVG outputs often faced limitations. Simple text elements in SVG do not inherently support automatic text wrapping like HTML paragraphs. This meant long messages could overflow their designated area, leading to truncated or poorly formatted text that negatively impacted the visual appeal of the streak statistics. Manual line breaks or simple string manipulation offered limited control, especially when dealing with proportional fonts and variable message content.

The Descent

Achieving robust and aesthetically pleasing text wrapping in SVG can be deceptively complex. While CSS can influence text within SVG, its capabilities for fine-grained line-by-line positioning and automatic wrapping within a constrained SVG bounding box are often insufficient. Developers frequently resort to custom algorithms to break text, but then struggle with how to render these individual lines precisely. The challenge lies in ensuring each line is correctly positioned relative to the others, maintaining consistent spacing, and adapting to different message lengths without hardcoding positions.

The Wake-Up Call

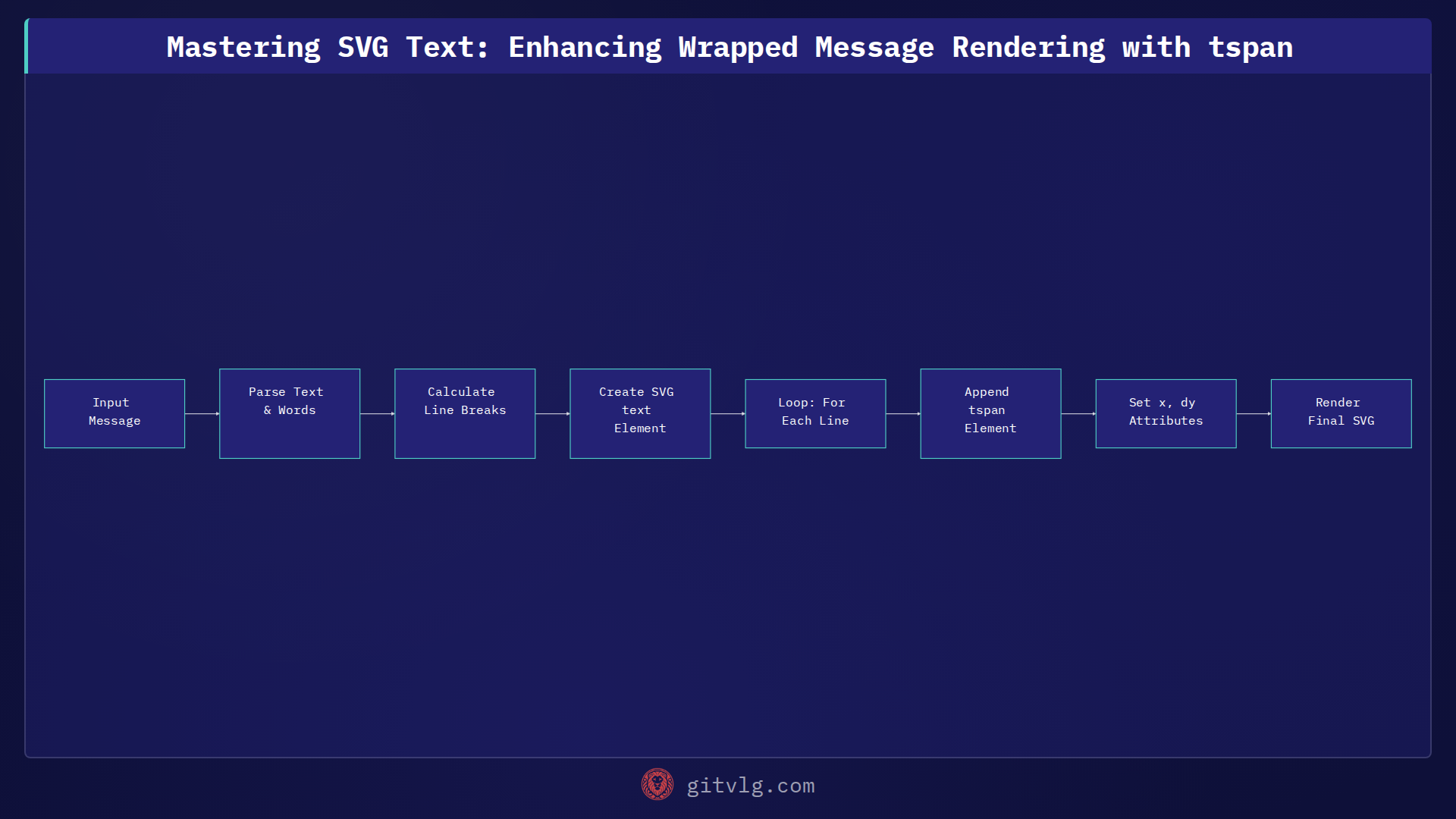

The solution to this granular control lies directly within SVG's native elements: text combined with tspan. The tspan element allows for individual segments of text within a parent text element to be positioned, styled, and rendered independently. This capability is paramount for implementing a custom text wrapping mechanism where each line can be treated as its own tspan with specific x and dy (delta y) attributes. By dynamically generating tspan elements for each line of wrapped text, we gain precise control over vertical spacing and horizontal alignment, ensuring that messages fit perfectly within their designated SVG boundaries.

What I Changed

The update involved refactoring the wrappedMessage rendering logic to utilize a tspan-based approach. Instead of rendering a single block of text, the input message is now processed to determine optimal line breaks. For each calculated line, a new tspan element is created and appended to the main text element. This allows us to set the x attribute for horizontal alignment (e.g., centering) and the dy attribute to control the vertical offset from the previous line, effectively creating a multi-line wrapped message. The previous implementation was kept commented during validation, highlighting the iterative testing process for such a fundamental rendering change.

function renderWrappedMessage(svgElement, message, xPos, yStart, lineHeight) {
  const words = message.split(' ');
  let currentLine = '';
  let lineCount = 0;
  const maxLineWidth = 200; // Example max width in SVG units

  const textElement = svgElement.append('text')
    .attr('x', xPos)
    .attr('y', yStart)
    .attr('text-anchor', 'middle');

  for (const word of words) {
    const testLine = currentLine === '' ? word : currentLine + ' ' + word;
    // A more robust implementation would measure text width dynamically
    // For this example, we'll use a simplified character count approximation
    if (testLine.length * 5 > maxLineWidth && currentLine !== '') { // Approx character width
      textElement.append('tspan')
        .attr('x', xPos)
        .attr('dy', lineCount === 0 ? 0 : lineHeight) // First line dy is 0, subsequent lines use lineHeight
        .text(currentLine);
      currentLine = word;
      lineCount++;
    } else {
      currentLine = testLine;
    }
  }

  // Append the last line
  textElement.append('tspan')
    .attr('x', xPos)
    .attr('dy', lineCount === 0 ? 0 : lineHeight)
    .text(currentLine);
}

The Technical Lesson

This refinement underscores a critical principle in front-end development, especially when dealing with SVG: embracing the native capabilities of the platform often yields the most robust and performant solutions. While higher-level libraries can abstract away complexities, understanding and utilizing core SVG elements like tspan provides unparalleled control over layout, styling, and animation. This direct manipulation is essential for creating pixel-perfect, dynamic visual components that meet specific design requirements without compromise.

The Takeaway

When confronted with complex text layout or rendering challenges within SVG, don't shy away from diving into the specifics of elements like tspan. By meticulously breaking down text into manageable segments and leveraging x and dy attributes, you can achieve precise, multi-line text wrapping that is both visually appealing and highly flexible. This approach empowers you to craft sophisticated SVG graphics where text integrates seamlessly, enhancing the overall clarity and impact of your visual data displays.
